Kuofu Provide a full line of swivel joints which is a metal pipe adapter installed with roller bearings based on the introduced technology from FMC/SPM company.
Swivel joints are divided into short and long radius swivel joints. Long radius swivel joints can minimize fluid resistance and have better performance in corrosion resistance than short radius ones due to their smooth bore. But short radius swivel joints are needed where the working space is limited. Standard and sour gas service are available, these world proven fittings come in 3/8 to 12 inch, and can handle pressure up to 20000psi. End connection can be threaded, integral weco wing union, beveled for welding or flanged.
Our high quality swivel joints are specially heat-treated and inspected in order to control hardness to qualified according to NACE MR 0175.



Recommended service
Long radium elbows designed especially for high pressure abrasive application such as fracturing, choke-and-kill lines, cementing and circulating hoses, acidizing, and test lines.

Features

1. Working pressure: from 2,000psi to 15,000psi
2. All body material meet ASTM or ANSI standards
3. Leak detection port
4. Interchangeable to FMC Chicksan swivel joint
5. Many different configurations available, style 10, 20, 30, 50, 60, 70, 80, 100
6. Triplestep swivel joint is manufactured from forged alloy steel and heat treatment.

Specification
High pressure swivel joint, cwp 6000psi, 3/8"-4"size, recommended for hydraulic control line, mud lines, rotary line connection, bop lines, test lines, offshore wellhead connections, cementing and circulating hoses, and choke-and-kill lines.
Chiksan swivels for sour gas are stamped sour gas and painted with an olive green, zinc-chromate primer to ensure quick, positive identification.

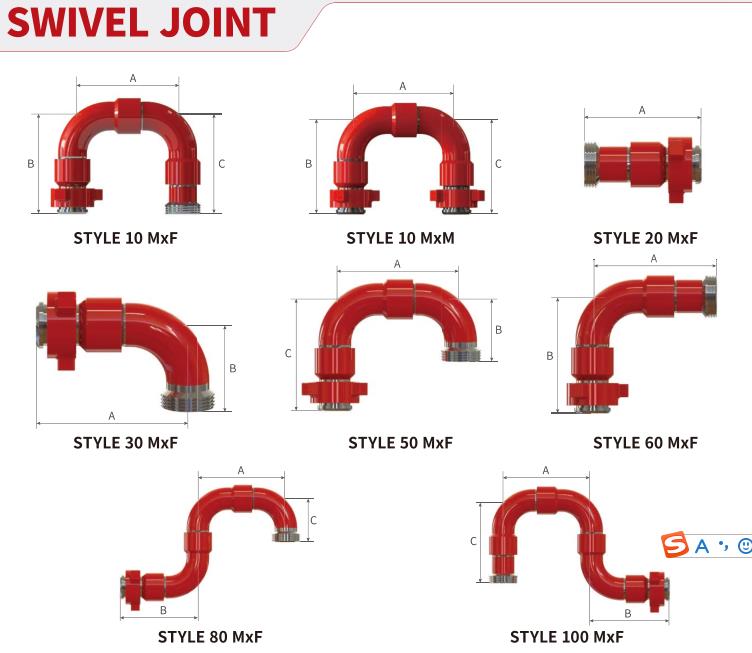

Chiksan swivel joints are available from stock in nine basic styles or configurations. These styles permit 360-degree
rotation and movement in one, two, or three planes. They can be combined in an unlimited variety of ways to suit
practically any installation. All Chiksan swivel joints are assembled using two or more standard pieces.

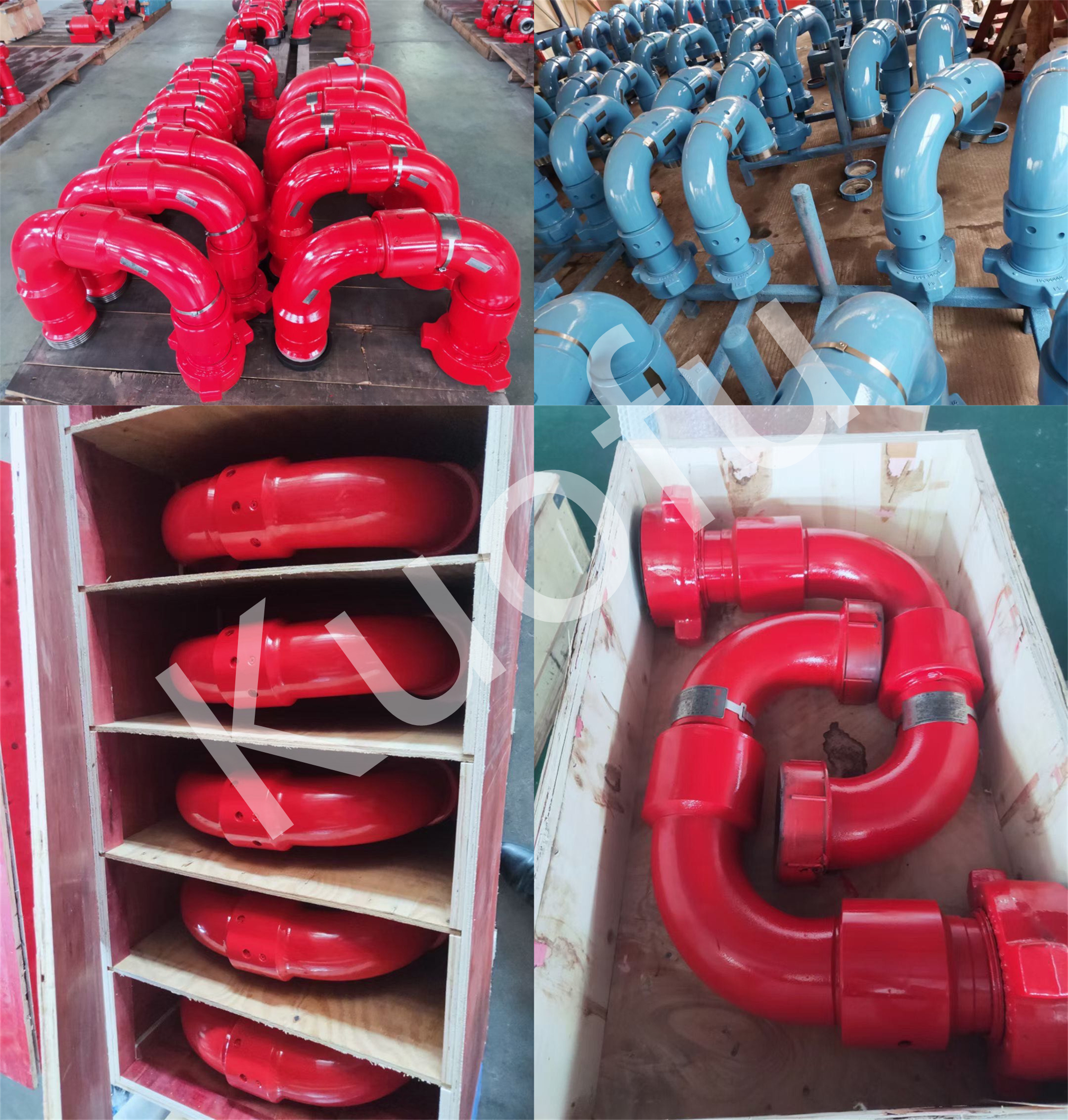

Real Photo

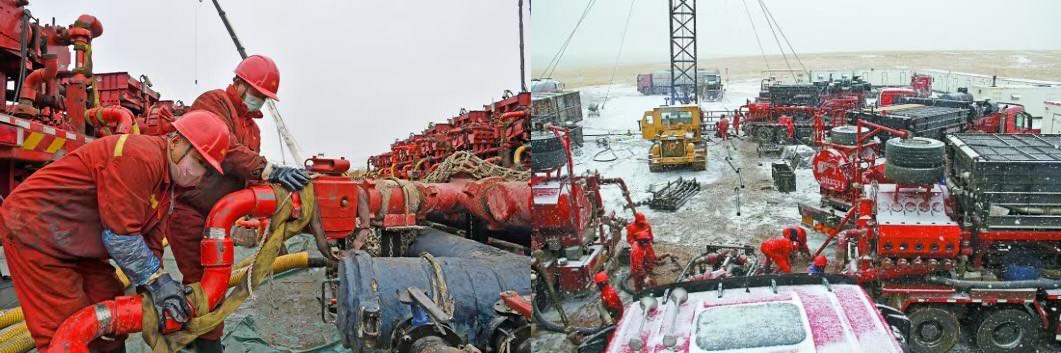

Application
